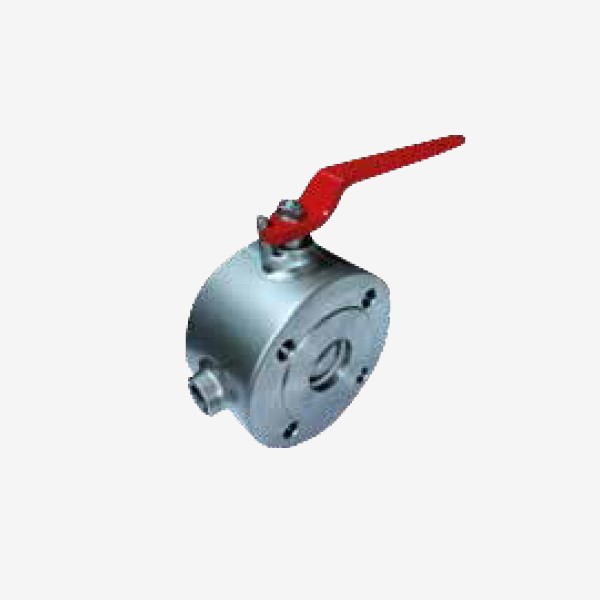

The body and ball of the monobloc ball valve with flange are made of AISI304 stainless steel.
Valves with jacket and double-jacket pipe system are used in the production of chocolate products from quick-hardening chocolate mass. A thermal jacket is threaded on top of the valve. Hot water passes through the cover, which circulates around the valve and prevents the chocolate from hardening.
Monobloc ball valve is equipped with a flange.
Specification of monobloc ball valve with flanged jacket: Full port PN16; PTEE gasket; Inlet-outlet pipe and nipple 3/4 inch
Single or Double Acting Pneumatic Actuated Valve.
Flanged-Jacketed Monoblock Ball Valves are produced between DN20 - DN80.
Flanged-Jacketed Monobloc Ball Valves are suitable for Industrial Chocolate Production Facilities, Medium Sized Chocolate Food Manufacturing Facilities, Boutique Businesses, Pişmaniye, Turkish Delight Workshops and Patisseries.
